Carbide Tile of Hybrid Reamer with 3 Stabilizer and 3 Reamer Blades

Carbide Tile Hybrid Reamer with 3 Stabilizer and 3 Reamer Blades - Visit our factory for high-quality drilling products. Order now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Stabilizer tiles
Certification
ISO 9001:2008
Surface Treatment
Sand Blast
Manufacturing Process
Stamping
Warranty
6 Month
Material
Tungsten Carbide
Transport Package
as Customer Demand
Specification
25x5x4 15x5x3 etc
Trademark
HONGZUAN
Origin
Hunan, China
Production Capacity
20 Ton Per Month

Product Description

Feature:

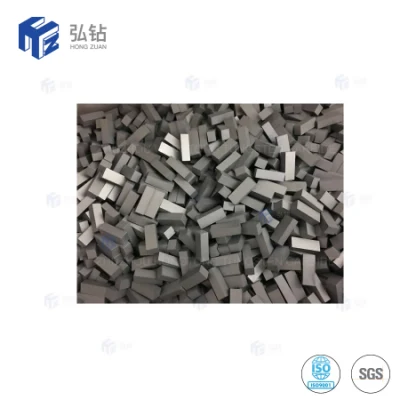

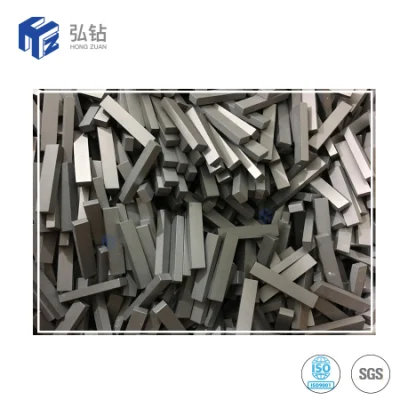

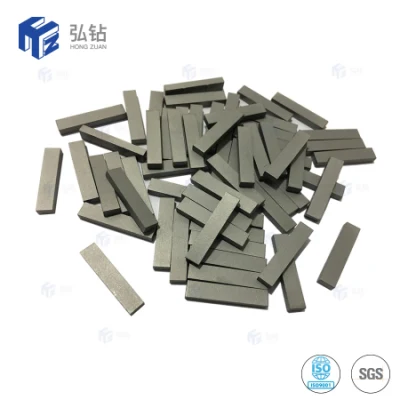

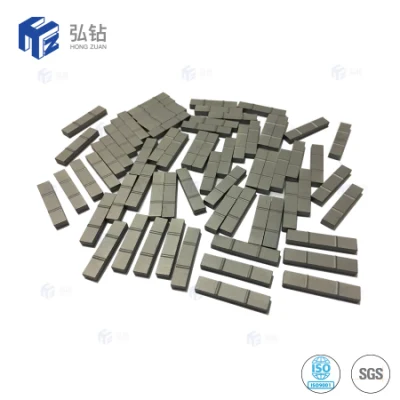

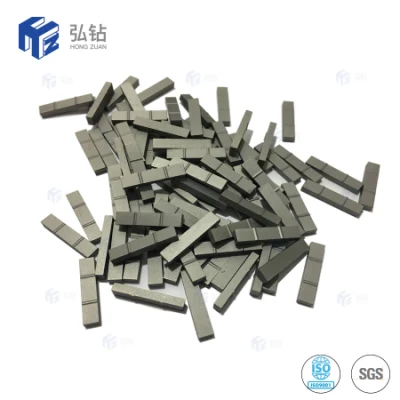

Tungsten carbide tile for  stablizer bit and TC radial bearing

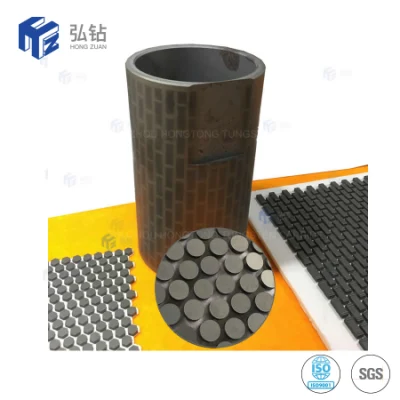

Tungsten carbide tiles for Radial Bearings
carbide tiles sheets TC bearing for stabilizer
Carbide TC bearing tiles sheets for stabilizer
Carbide TC bearing tiles

Carbide Tile of Hybrid Reamer with 3 Stabilizer and 3 Reamer Blades
Advantage
1.We are factory
2.ISO 9001:2015 Certificated
3.With 100% tungsten carbide raw material
4.Advanced technology, automatic pressing, HIP sintering and strict products quality inspection
5.Free samples provided
6.Make to customer's requirements
7.Products could be precision grinded and polished
8. Delivery in time
9. Good after-sales service

Carbide Tile of Hybrid Reamer with 3 Stabilizer and 3 Reamer Blades


Common size
Carbide tile size
L MM
W MM
H MM
1
6
5
3
2
6
5
4
3
13
5
3
4
13
5
4
5
20
5
4
6
25
5
3
7
25
5
4
8
Φ9.5
3
9
Φ6
3
10
Φ6
2
Note: The unlisted sizes are avaiabe upon customer's requirement.

Product Application
Our carbide are used as YG8D YG9D YG11C wear parts tungsten carbide block, wear resistance tungsten carbide block to reduce wearing away and protect the machine parts, etc.

Carbide Tile of Hybrid Reamer with 3 Stabilizer and 3 Reamer Blades

Grade No of property for Stabilizer tips & carbide tile of hardfacing for TC radial bearing



Grade No

Density

g/cm3

HRA

Bending Strength

MPa

Coercive Magnetic Force

KA/m

Cobalt

(%)

Porosity

Non- compound Carbon

YG6

14.85~15.05

≥89.50

≥1800

12.0~15.9

4.9~5.9

A04 B02

C00E00

YG8

14.65~14.85

≥89.00

≥1900

10.2~15.0

6.5~7.7

A02 B02

C00E00

YG8C

14.55~14.75

≥87.50

≥2000

7.6~9.6

7.1~8.2

A02 B02

C00E00

YG10

14.40~14.60

≥88.0

≥2300

9.0~12.0

9.0~10.0

A02 B02

C00E00

YG11

14.30~14.50

≥87.00

≥2000

8.0~13.0

9.5~11.0

A02 B02

C00E00

YG11C

14.20~14.40

≥86.50

≥2400

6.0~8.0

9.5~11.4

A02 B02

C00E00

YG12

14.21~14.41

≥88.0

≥2500

7.0~11.0

11.0~12.0

A02 B02

C00E00

YG13C

14.10~14.30

86.5~87.5

≥2350

5.8~7.8

11.5~13.0

A02 B02

C00E00

YG15

13.95~14.15

≥86.50

≥2220

8.0~10.8

13.0~14.6

A02 B02

C00E00

YG16C

13.80~14.00

≥84.00

≥2480

4.8~6.4

14.1~16.4

A02 B02

C00E00

YN12

14.2~14.41

≥86.60

≥2350

6.0~8.0



A02 B02

C00E00



Carbide Tile of Hybrid Reamer with 3 Stabilizer and 3 Reamer BladesCarbide Tile of Hybrid Reamer with 3 Stabilizer and 3 Reamer Blades
Carbide Tile of Hybrid Reamer with 3 Stabilizer and 3 Reamer Blades


Hardfacing for integral blade stabilizers we can supply:

HF1000/HF2000/HF3000/HF4000

HF1000 Crushed tungsten carbide held in a nickel bronze matrix. The 3mm grain size ensures greater concentration of carbide which is ideal for soft formation drilling.

HF2000 Trapezoidal tungsten carbide inserts held in a sintered carbide nickel bronze matrix. This will give a greater depth of carbide coverage -- ideal for high deviation drilling in abrasive formations.

HF3000 Tungsten carbide inserts set in a power spray deposit ideal for abrasive formation. 97% bonding guaranteed, certified by ultrasonic report. Recommended for non-magnetic stabilizers.

TCI Tungsten carbide inserts (button type). The inserts have been developed to allow cold insertion and maintain close fit. A greater concentration of inserts on the bottom third of the blade and leading edge will increase surface contact to reduce wear in highly abrasive formations.


Company Profile
Carbide Tile of Hybrid Reamer with 3 Stabilizer and 3 Reamer BladesCarbide Tile of Hybrid Reamer with 3 Stabilizer and 3 Reamer Blades
ZhuZhou HongTong Tungsten Carbide Co., Ltd.,specialized in production carbide products more than 20 years and located in the hometown of tungsten carbide in China. We can manufacture all kind of tungsten carbide products. Our products are utilized in industrial, aerospace, machining, metallurgy, oil drilling, mining tools, electronic communications, construction applications. Now we are exporting to 46 countries. including USA, Russian , India , Italy, Poland ,France,Brazil etc .

We have a professional QC team follow to the System of ISO9001:2015, Covering the Raw Materials Incoming, Production Processes,Finished Products and Packaging to ensure high quality products output.

Carbide Tile of Hybrid Reamer with 3 Stabilizer and 3 Reamer Blades

Carbide Tile of Hybrid Reamer with 3 Stabilizer and 3 Reamer Blades

We mainly produce Tungsten Carbide Ball and Seat, Agriculture wear parts plates, Carbide tips, Carbide tiles,
HPGR Stud pins, Brazed Inserts, Gripper Pads, Buttons, VSI Bars, Rod, Strips, PDC substrate, Weld on teeth,
Bushings, Wire Drawing Dies, Heading Dies, Seal Ring, Nozzles, and other customized carbide products.


Carbide Tile of Hybrid Reamer with 3 Stabilizer and 3 Reamer Blades

Product packaging
Carbide Tile of Hybrid Reamer with 3 Stabilizer and 3 Reamer Blades

FAQ

Q1 : Are you Factory or trading company ?
We are Factory with 20 years of production experience.

Q2: What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning,
stoving, oil coating, cover pressing, testing, package.

Q3: How to control the products quality?
All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.

Q4: What is the transportation?
If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large quantity, by sea.

Q5: Can you provide OEM service?
Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products

Q6: How to place an order for Good performance nonstandard products by stellite alloy? 1. Fill your Order List in our online
Inquiry System (Also you can directly contact our salesperson by E-mail / Skype / Whats App) 2. We will make a feedback to you ASAP after receive your order list.

Q7: What's your delivery time ?
For the normal type which we have mold it takes 7-15 days after receiving the advance payment. For the non standard which we do not have mold it takes 15-35 days after receiving the advance payment.

Q8:How to contact us?
You can Contact me by E-mail, Trademanager, Skype, Mobile, whatsapp and so on
