SSS 80/92/14/10j Series Staple Pin Making Machine Staple Brad Nail Processing Machine

Looking for a high-quality staple pin making machine? Our SSS 80/92/14/10j Series Staple Pin Making Machine is designed for efficient staple and brad nail processing. We are a factory committed to delivering top-notch products.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SSS-U25
Wire Band Thickness
0.35-0.45nn
Motor
5.5kw
Weight
1400kg
Transport Package
Plywood Cases
Specification
1200*1400*1700
Trademark
SSS
Origin
China
Production Capacity
10 Sets/Per Month

Product Description

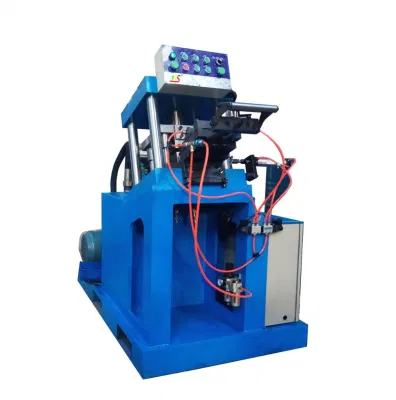

SSS 80/92/14/10J series staple pin making machine
Staple Brad Nail Processing Machine



Suitable for the production of N nails, K nails, J10 series, 4 series, cultural nails, 80,92,14, sealing nails and other U nails

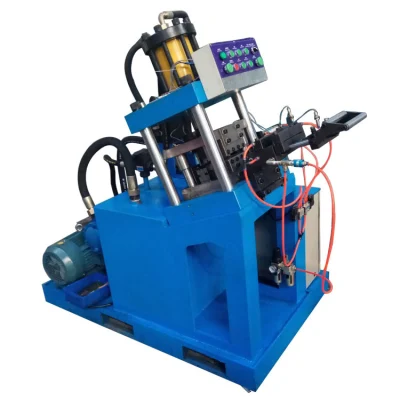

This machine has abandoned the traditional heavy punch, adopts the oil pressure system as the execution part, uses the PLC microcomputer centralized control, has the operation safety, the performance is stable, the noise is small and so on the characteristic, compares the traditional punch molding machine to hammer the speed to increase greatly.

SSS 80/92/14/10j Series Staple Pin Making Machine Staple Brad Nail Processing Machine
SSS 80/92/14/10j Series Staple Pin Making Machine Staple Brad Nail Processing Machine

Process of Production Line

Making Process: Raw material (galvanized wire)  ------->  Wire drawing  -------> Wire flattening  ------->  Wire gluing  ------->  Staples pressing  -------> Staples packing

Machined involved in the production line
Item Description
1 Water tank wire drawing and flattening integrated machine
2 Wire band gluing combiner with wire pay-off rack
3 Hydraulic press/forming machine
4 wire band winding trolley
5 wire band feeding machine(straightening)
6 active wire bank feeder
7 plastic spool(50kg load capacity)
8 semi-auto packing machine
9 fully-auto packing machine
10 butt welding machine


Machine Parameters

Parameter unit TJB-U25 TJB-U60
Punch force KN 300 600
Times of sroke Times/min 100-160 60-90
Wire band width mm 100-130 80-110
Wire band thickness mm 0.4-0.65 1.0-1.35
size width mm 1345 1930
length Mm 1170 1560
height mm 1800 1900
Power of motor Kw 5.5 7.5
Wight Kg 1500 2100


 Introduction of the Whole Production Line

SSS 80/92/14/10j Series Staple Pin Making Machine Staple Brad Nail Processing Machine
1. Water Tank Wire Drawing and flatten machine

High speed water tank wire drawing and flattening integrated machine adopts 17 molds and 4 groups of cone type pulley wheels, all wheels with tungsten carbide coating. The flattening machine adopts tungsten carbide wheel with high hardness and shining surface, which can ensure the exact flattening thickness. This group of machines can work together smoothly like one machine with one starting button.

Maximum in-let wire diameter: 2.0mm
Minimum out-let wire diameter: 0.43mm

SSS 80/92/14/10j Series Staple Pin Making Machine Staple Brad Nail Processing Machine


2. Wire Flattening Machine

This single wire flattening machine adopts tungsten carbide alloy pressing roller, which has the advantages of high hardness and good brightness of the surface of the pressing wheel, and stepless speed change. Water cooling in the pressing roller effectively extends the life of the alloy roller.
SSS 80/92/14/10j Series Staple Pin Making Machine Staple Brad Nail Processing Machine
3. 210-spool pay-off SSS-JX210

Straighten each wire through the wire take-up spool. Each wire is equipped with a pulley cycloid device, and the pulley cycloid device sends the wire to the straightening wheel in the order of the wire. The bent wire will be automatically straightened by the straightening wheel to meet the qualified requirements.Advantages: Each wire gets the same pulling force even thickness smooth
wire band.
SSS 80/92/14/10j Series Staple Pin Making Machine Staple Brad Nail Processing Machine
4. Wire Band Gluing Machine

This group of machines including wire pay-off frame, with leveling and straightening equipment at front and rear part of the production line. The production line can glue the wires automatically and dry the wire band automatically.
SSS 80/92/14/10j Series Staple Pin Making Machine Staple Brad Nail Processing Machine
5. Automatic Staple Packing Machine

Power of main motor: 80W
Max. Designed capacity: 40 boxes/min
Machine dimension: 1.2×1.1×1.5m(L×W×H)
Machine weight: about 150Kg
Size of carton: max. 125×45×30mm(L×W×H)
min. 120×20×15mm (L×W×H)
Noise:less than 85 db


Customer Visit
SSS 80/92/14/10j Series Staple Pin Making Machine Staple Brad Nail Processing Machine
Packing and Delivery

SSS 80/92/14/10j Series Staple Pin Making Machine Staple Brad Nail Processing Machine
1. Shipping port: Shanghai
2. Validity: within 30 days
3. Payment terms: 30% T/T down payment in advance and 70% before shipment
4. Warranty: 1 year from date of installation
5. Installation/Operation/Service/Maintenance Manual: Provided In English
6. In wooden pallet, In plastic film, the spare parts and cabinet packed by wooden box.


Our Company

SSS 80/92/14/10j Series Staple Pin Making Machine Staple Brad Nail Processing Machine
 SSS HARDWARE INDUSTRY CO., LTD. specializes in thread rolling machine, nail making machine, high speed nail making machine, wire collating machine, nail polishing machine, wire drawing machine, staple making machines and all kinds of nails .

 Our factory covers an area of 60,000 square meters and owns 300 sets of equipment. We are supported by seven branch work plants to ensure our good quality and prompt delivery. Quality is our priority and your satisfaction is what we are striving for.

 Our products are very popular in UK , Italy, Germany, France, Poland, Slovenia, Bulgaria, Belarus, Serbia, Russia, Canada, America, Mexico, Korea, Brazil, Argentina, Colombia, Guatemala, Venezuela, South Africa & New Zealand. You can totally rest assured of our guaranteed quality and our good after-sales service. Please feel free to contact us for more details including prices.

 Looking forward to cooperating with you soon based on our all-time guaranteed quality, our best price and service !

SSS 80/92/14/10j Series Staple Pin Making Machine Staple Brad Nail Processing Machine
SSS 80/92/14/10j Series Staple Pin Making Machine Staple Brad Nail Processing Machine
