Tungsten Carbide Straight Tube Bearing Sleeve Bushing

Our factory produces high-quality Tungsten Carbide Straight Tube Bearing Sleeve Bushings. Shop now for durable and long-lasting industrial components.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Keywords
Tungsten Carbide Bushings and Sleeve
Shape
Sleeve, Flanged, Spacer
Grade
Yg8 Yg6 Yg10X Yn6 Yn8 Yn9
Size
Customized Size
Chemical Composition
Wc and Co
Bush Types
Washer
Transport Package
Standard or Customized
Specification
ISO9001 SGS
Trademark
LIHUA
Origin
Zhuzhou, China (Mainland)

Product Description

High quality silicon carbide bearing/bushing/sleeve high quality pump tungsten

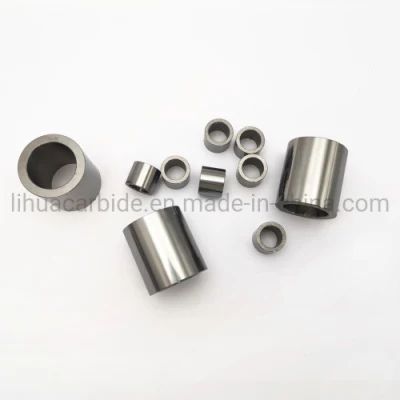

Tungsten Carbide Straight Tube Bearing Sleeve Bushing

Advantages :

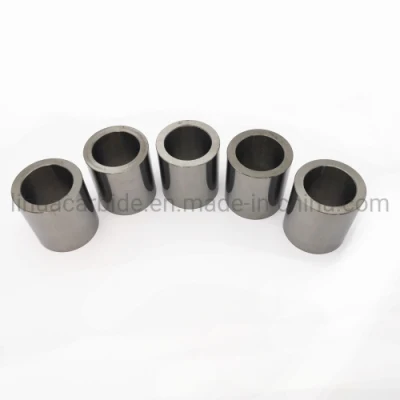

  Tungsten Carbide Straight Tube Bearing Sleeve Bushing

(1). Abrasive resistant, corrosion free, good compression property, the most wear-resistant bushing, heat resistance, low maintenance ;

(2). The hardness is 10 times of gold, 5 times of tool steel, 4 times of titanium, oil resistance, separate the harmful medium;

(3). No shape change, no twist when temperature is above 1000 °C or below 500 °C, long service life, the maximum height can reach 270mm;

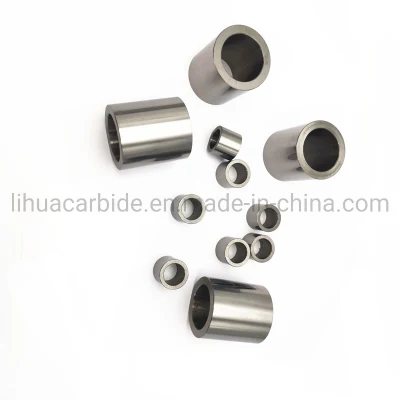

Tungsten Carbide Straight Tube Bearing Sleeve Bushing

 The grade information for sintered carbide shaft sleeves

Grade Binder
(Wt%)
Density
(g/cm3)
 Hardness
 (HRA)
TRS
 (over N/mm2)
YG6 6 14.8 90.0 1520
YG6X 6 14.9 91.0 1450
YG6A 6 14.9 92.0 1540
YG8 8 14.7 89.5 1750
YG12 12 14.2 88.0 1810
YG15 15 14.0 87.0 2050
YG20 20 13.5 85.5 2450
YG25 25 12.1 84.0 2550



Grade Density
g/cm3
T.R.S  MPa Hardness HRA Performance & Application
 Recommended
YG6 14.9 2150 89.5 Qualified for finish machining and semi-finished
machining for the cast iron,non-ferrous metal
alloy and unalloyed materials.
YG6X 14.9 1560 91
Qualified for machining of chilled cast iron

YG6A 14.8 1580 91 Alloy cast iron,refractory steel , alloy steel.Also qualified for the machining of common cast iron.
YG8 14.7 2320 89.5 High bending strength,wear resistance lower than
YG6A,used for processing blades,wear resistance
parts etc.
YG11C 14.4 2260 87.5 Qualified for molding the drills for heavy-duty
rock drill:detachable bits used for
deep hole drilling,rock drill torlley etc
YG15 14.0 2500 87.5 Used for punch dies,stamping dies and wear resistance
YS2T 14.5 2800 92.5 Qualified for low speed rough machining,milling,
titanium alloy and refractory alloy,especially for cut-off
tool and sick prick.
YL10.2 14.5 3400 92.5
YG20 14.6 2480 83.5 Qualified for making dies with low impact such as
punching watch parts,battery shells,small screw caps etc


Zhuzhou Lihua Cemented Carbide Co.,Ltd

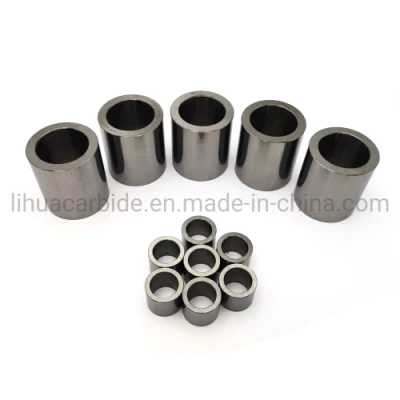

Tungsten Carbide Straight Tube Bearing Sleeve Bushing

About Lihua Cemented Carbide
Established in 1990, specialized in production carbide products more than 20 years and located in Z huzhou city which is the hometown of tungsten carbide in China .
Our products sold well to worldwide ,has been build a long term relationship with our customers from Italy , Portugal, German ,Turkey ,USA ,Mexico ,India , Austrilia ,South Africa etc .

Main Products
Our Main products include : Carbide Screwed Boring Bar, Plates, Rods, Sticks, Bushings, TP nozzles, 3D Printer Nozzles, Saw Blades, End Mills & Drill Bits, CNC inserts, Value Seats, Rotary Burrs, wheel cutters, Grits, Cusomized cutter :woodworking tool ,V-cutter , textile cutter , shoes cutter ects ,Any kinds of customized carbide products .

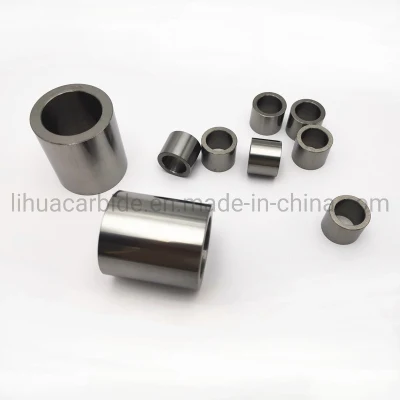

Tungsten Carbide Straight Tube Bearing Sleeve Bushing

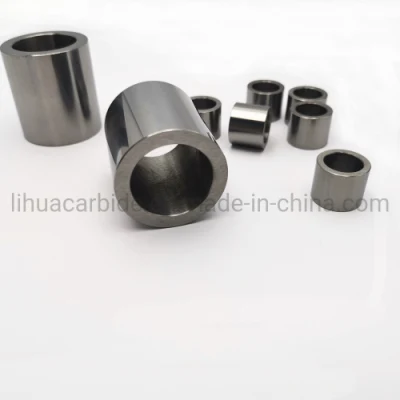

Tungsten Carbide Straight Tube Bearing Sleeve Bushing
Daily capacity of 15Ton
We have sophisticated equipments, such as Sintering Furnace, Automatic suppress Machine, Manual  Hydraulic Suppress Machine, Ball Mill Machine, Drying Machine, Mixing Machine ect, Our production capacity up to 15Ton per day. Customized is welcome, customized sample can be ready in 3-5 days and 1 day can deliver for stocks.

Strictly QC
We have a professional QC team follow to the System of ISO9001:2008, Covering the Raw Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.
